BGAN Vehicular

BGAN Explorer 325 Vehicle Satellite Terminal

$6,995.00

EXPLORER 325 is a compact BGAN system for on-themove communication. The system consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna with magnetic mounts.

• Explorer 325
• Features
• Videos

• With the Cobham EXPLORER 325, you can connect with the world via voice or data through the Inmarsat BGAN network instantly, even while the vehicle is in motion. The communication provided by the EXPLORER 325 will never leave you out of touch, even when traveling at speeds up to 200 km/h.
  BGAN allows data transmission speeds of up to 384 Kbps for streaming, even when moving at high speed over rough terrain. Enjoy a fast connection and the confidence that it won’t be interrupted when traveling through harsh environments.

• Data Services

  • Standard IP: Up to 384 Kbps (upload and download)
  • Streaming IP: 32, 64, and 128 Kbps (upload and download)
  • SMS: 160 characters

  Voice Services

  • Voice at 4 Kbps

  IP Protection Rating

  • Antenna: IP56
  • Transceiver: IP31

  What’s in the box?

  • Explorer 325 Transceiver
  • Tracking antenna for Explorer 325 with magnetic mount
  • Antenna cable, coaxial with TNC connectors (2.7 m / 8.8 ft) & Ethernet cable (2 m / 6 ft)
  • Thrane IP Handset with cradle & coiled cable
  • Quick start guide, user manual with CD
  • DC input cable 12/24V DC (3 m / 9.8 ft)



  More information: Download Brochure

• Videos

View full product details »

---

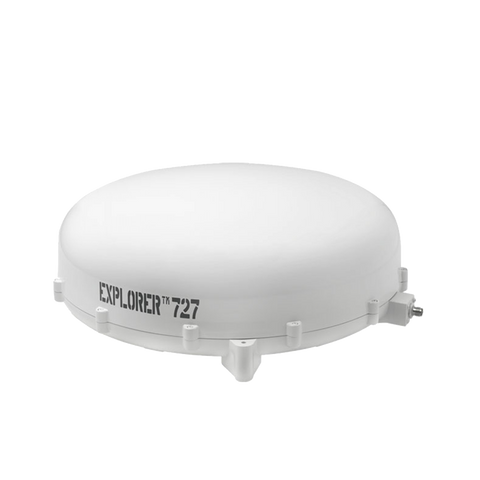

BGAN Explorer 727

$14,345.00 $17,493.75

Comprehensive communcation hub for vehicles EXPLORER 727 is a high-speed, vehicular broadband system. It consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna.

• Explorer 727
• Features
• Videos

• With the Cobham Explorer 727 terminal, anyone inside a moving vehicle, even under the harshest terrain conditions, can have simultaneous access to high-speed voice and data services via the Inmarsat I4 network, with global coverage.
  This powerful terminal, built with robust construction and designed to operate under adverse weather conditions, provides services such as global telephony, ISDN 64 Kbps data, standard IP data service up to 432 Kbps for email, Internet, large file transfers, remote access, and streaming up to 256 Kbps for videoconferencing.

• Services

  • Voice: make calls while accessing your data applications. Voicemail is also available. Fax service can be used through the voice channel.
  • ISDN: 64 Kbps ISDN service for legacy applications
  • IP: standard data transmission for email, Internet access via secure VPN connection, up to 432 Kbps over a shared channel
  • SMS: send and receive text messages (up to 160 characters)
  • Streaming: guaranteed on-demand data transmission speeds up to 256 Kbps

  Technical Features

  • Voice: 4 Kbps / audio 3.1k: 64 Kbps / ISDN data: 64 Kbps
  • Simultaneous use of all interfaces: Ethernet, ISDN, and WLAN
  • Multi-user capability: up to 11 sessions simultaneously. Selectable Streaming Quality of Service (guaranteed bandwidth): 32, 64, 128, or 256 Kbps
  • Operates on the Inmarsat network

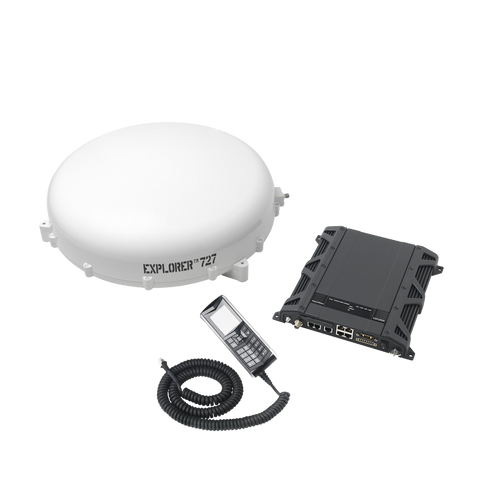

  What’s in the box?

  • Explorer 727 device
  • Tracking antenna for Explorer 727
  • Antenna cable: coaxial with TNC connector (2.7 m & 8 m / 8.8 ft & 26 ft)
  • Standard Ethernet cable: 5 m (16.4 ft)
  • 12/24VDC power cable 6 m
  • Antenna mounting kit
  • Quick start manual with CD



  More information: Download Brochure

• Videos

View full product details »

---

BGAN Hughes 9450-C11 Vehicle Satellite Terminal

$5,961.25

Connect at IP broadband speeds of up to 464 kbps while on-the-move using the world’s smallest mobile BGAN terminal.

• Hughes 9450-C11
• Features
• Videos

• The Hughes 9450 BGAN, Class 11 terminal, offers a solution for mounting a BGAN terminal in a moving vehicle. This system provides Internet and voice access. It supports POTS and ISDN voice phones. Maximum speed is 400 Kbps with 128 Kbps streaming. A WiFi transceiver is integrated, and no antenna alignment is required.

• Main Features

  • Fully autonomous tracking antenna, acquires and tracks the BGAN satellite signal while in motion
  • Easy installation on the vehicle roof
  • Includes RF cable and power cable for vehicle installation
  • Speeds up to 464 Kbps for shared data transmission and 256 Kbps IP streaming
  • Simultaneous use of Ethernet and WLAN for IP data, plus RJ-11 or ISDN for voice
  • Internal Web UI for configuration and control without using the Launchpad
  • Web UI accessible via smartphone and/or tablet Wi-Fi
  • Multi-user capability (up to 11 simultaneous sessions)
  • 9450TW-C11 Wi-Fi, PoE Ethernet, RJ11 phone/fax

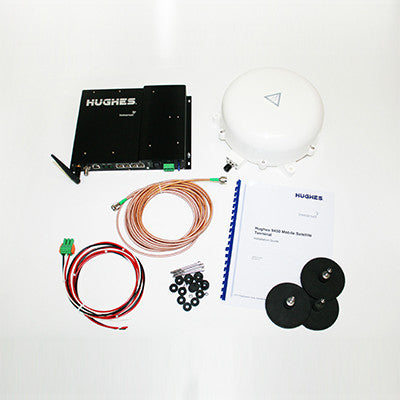

  What’s in the box?

  • Hughes 9450-C11 portable satellite terminal
  • Tracking antenna, 8 m RF cable, power cable (magnetic mounts optional). Note: Maximum loss must be less than 10 dB at 1.6 GHz
  • User guide and manual



  More information: Download Brochure

• Videos

View full product details »

---

Bolt-on Mount Antenna (RST220) Beam

$223.25

The RST220 Beam Bolt Mount Antenna is designed for land-based applications, specifically for vehicles or M2M application.  The RST220 is suitable for use in demanding environments. 

Key features and benefits

• Iridium Approved
• Bolt mount
• Small and lightweight
• Designed for applications in harsh weather conditions (IP67, IP69K, IK09)
• Ground-plane independent
• Includes 5 m cable
• 12-Month Warranty

View full product details »

---

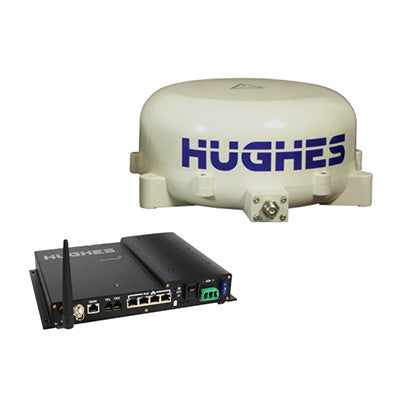

Terminal Satelital Vehicular BGAN Hughes 9350-C10

$16,343.75

• Hughes 9350-C10
• Características
• Videos

• Imagine que se conecta a velocidades de banda ancha IP de hasta más de 400 Kbps (dependiendo del ángulo de visión) de transmisión y recepción mientras está en movimiento, con un paquete completo de comunicaciones móviles, que incluye un terminal IP por satélite de banda ancha y seguimiento de la antena. Esto es exactamente lo que se obtiene con el avanzado terminal satelital móvil Hughes 9350-C10. Totalmente aprobado para operar con el servicio mundial de satélites BGAN de Inmarsat, el Hughes 9350-C10 ofrece conectividad de alto rendimiento en movimiento para los entornos más exigentes.
  El Hughes 9350-C10 es ideal para servicios de emergencia, periodistas y trabajadores móviles que necesitan conectividad de alta velocidad, fiable sobre la marcha.

• Características Principales

  • Antena de seguimiento totalmente autónoma, adquiere y rastrea la señal de satélite BGAN mientras está en movimiento
  • Fácil instalación en el techo del vehículo
  • Incluye cable de RF y cable de poder para instalación en el vehículo
  • Velocidades de hasta 464 Kbps en transmisión de datos compartidos y 256 Kbps tasa de transmisión IP streaming
  • MMI Web interna para configuración y control sin el uso del Launchpad
  • MMI Web accesible vía Wi-Fi de smartphones y/o tablets

  ¿Qué hay en la caja?

  • Antena rastreadora: C10
  • Cable de 8 m RF desde el modem 9350 hasta la antena. Nota: La pérdida máxima debe ser menor a 10 dB a 1.6 GHz
  • Terminal satelital Hughes 9350
  • Cable de poder DC-a-DC
  • Cable de poder opcional "cigarette lighter"



  Más información:    Descargar Brochure

• Videos

View full product details »

---
