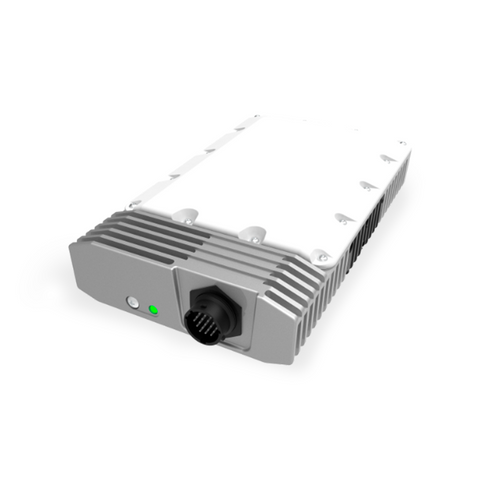

hiSky´s Smartellite™ Dynamic / Ka-band®‍

SatelliteTerminal for On-the-Move IoT Connectivity

hiSky‘s Smartellite™ Dynamic Ka terminal is part of a unique line of satellite terminals that features innovative technology, enabling portable itinerant operations or fully mobile operations, for various applications in the IoT field.  The terminals are FCC & CE certified, lightweight, easy to mount, install, pair and operate.
The SmartelliteTM Dynamic Ka terminal is a low-cost, compact satellite device with unique state-of-the-art design
& technology, designed to be used by your driving workforce.

The terminal comprises an electronically steerable phased array antenna and a built-in modem, providing
a mountable, single-unit solution, which independently & seamlessly directs communication through Ka-band frequencies over GEO satellites.

This exceptional ground terminal is a part of hiSky’s agile IoT network, enabling on-the-move satellite services according to our customer’s applicational needs.hiSky’s agile IoT network, provides an easy-to-use, cloud-based platform enabling data backhaul for actionable insights from anywhere on the planet.

The terminal offers hybrid connectivity introducing automatic Satellite & LTE switching capabilities.
It’s default mode is LTE connectivity, but as soon as the terminal leaves cellular range, it automatically transfers all communication to satellite, ensuring that users will always be connected and able to communicate, even in the most challenging environments.

This terminal, designed to meet the requirements of both LEO and GEO satellites, have the unique ability to switch between them for Low Data Rate (IoT & MSS services) and for High Data Rate (Broadband) applications, guaranteeing a future-proofed solution that will correlate with the market’s connectivity demands.

Features

Automatic satellite acquisition with electronically steered, phased array antennas eliminating the vehicle’s movement from effecting connectivity.
Optional -Hybrid connectivity Satellite & LTE.
Enables all vehicle and human connectivity over satellite through one device:

Vehicle telemetry: location &tracking | predictive maintenance geofencing and routing | CANBUS telematicsHuman communication from any smartphone: voice calls |chat | PTT | SOS alerts.

Agile IoT Network hiSky’s open architecture enables easy integration with any device or application provider that suits your business needs, and integrates with any existing network to complement your coverage in all rural areas worldwide.

View full product details »

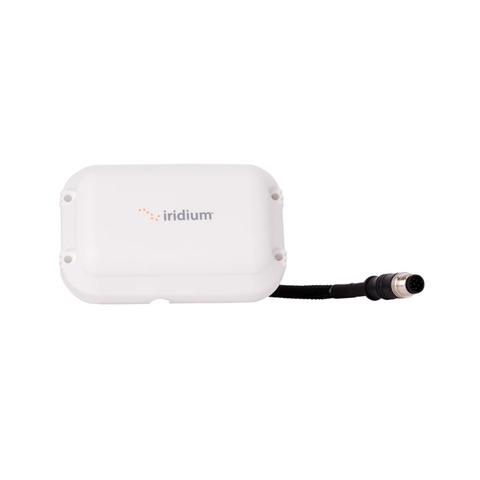

Iridium Edge®

Allow your customers to leverage existing terrestrial solutions for fleet management, telematics, security, and other remote monitoring applications with the help of Iridium Edge^®, a ready-to-use satellite communications device that extends connectivity beyond the bounds of a cellular system to ensure 100% global Internet of Things (IoT) coverage.Rapid time-to-market is one of the critical components in the highly competitive communications environment. Iridium Edge^® is a complementary satellite device that provides dual-mode capability and reduces the costs, uncertainties, and complexities of satellite terminal development, manufacturing, and certification.

View full product details »

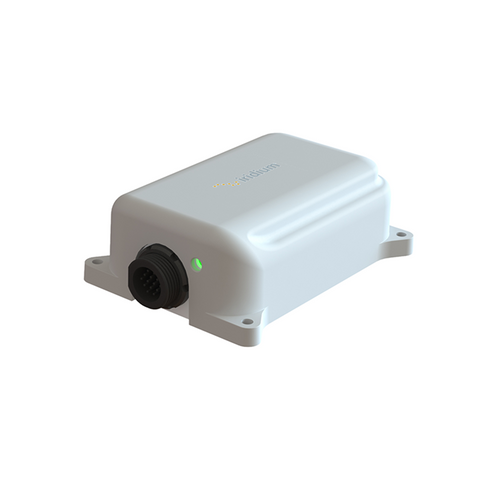

Iridium Edge® Pro

Customize. Deploy. Iridium Edge^® Pro offers a streamlined way to innovate, customize and deploy smarter solutions for remote asset management. Create customizable end-to-end monitoring solutions for remote vessels, vehicles and equipment using best-in-class Iridium two-way networking and truly global coverage.

View full product details »

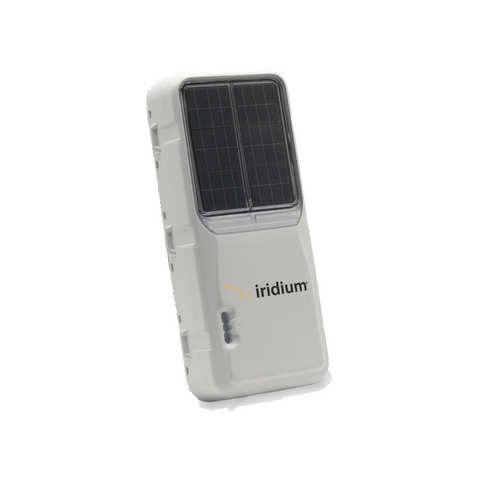

Iridium Edge® Solar

Smart, Secure and Solar Powered By harvesting the sun's energy, Iridium Edge^® Solar enables long-term deployment of tracking, monitoring and asset management solutions. A self-contained, programmable device powered by Short Burst Data^® (SBD^®) solar energy, the Iridium Edge^® Solar offers real-time GPS tracking, local wireless sensor and Bluetooth communication capabilities.

View full product details »

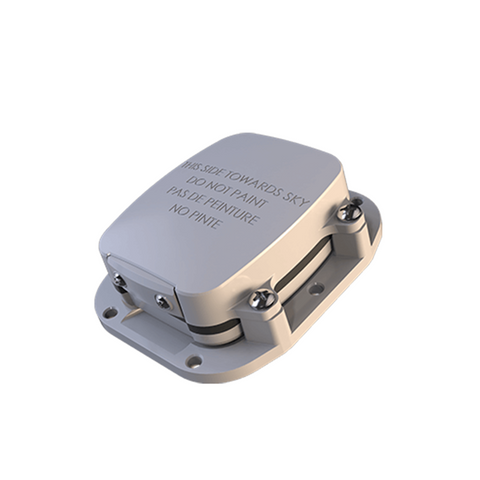

SmartOne C

Designed for remote management of fixed or mobile assets, the SmartOne C is a practical solution and features a variety of functions, including:
✦ Scheduling up to 12 different data transmission intervals.
✦ 24-hour or interval operation.
✦ Transmission scheduling alternating.
✦ Low battery message.

View full product details »

SmartOne Solar

SmartOne Solar is a low-maintenance IoT device that provides remote monitoring and tracking capabilities.
✦ The Device can be applied for Transport solutions: in the monitoring and tracking of assets.
✦ Gas and Oil: assisting in the deployment of high value assets in field research and exploration.
✦ Construction: determining when and where your equipment is being used.
✦ Security: monitoring valuable assets such as train cars, propane tanks and agricultural machinery.
✦ Maritime: in the monitoring of assets such as boats at the dock and off-shore.
✦ In addition to other applications such as industry, mining, forestry, public service and fisheries.

View full product details »

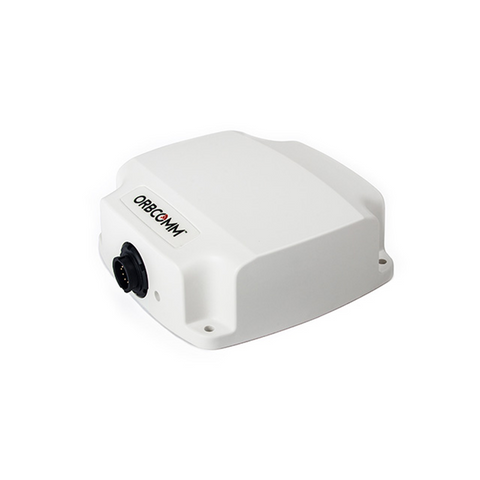

Orbcomm ST 6100

The latest generation in satellite terminals more powerful, more versatile, greater coverage. Track, monitor and control assets in some of the most isolated regions in the world.

View full product details »

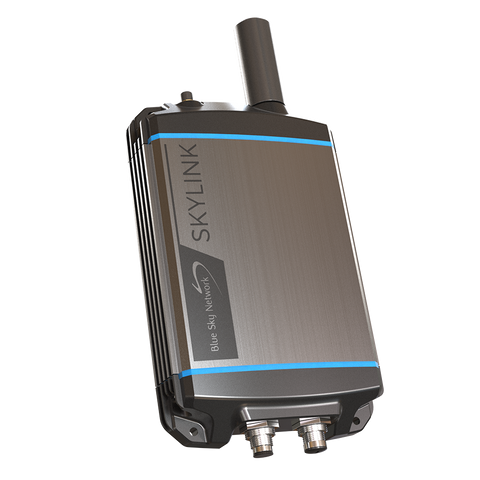

SkyLink 5100 IoT Kit A GLOBAL

$3,554.38

✦ Includes Dual-Mode Data Gateway (SL10001).
✦ Maruwa antenna (MHL-1621C).
✦ LTE antenna (YCN001AA).
✦ Universal mounting kit (SL100-MB).
✦ POE (Power over Ethernet) injector (SL100-POE-INJ).
✦ 1' flexible Ethernet adapter (SL100-ETH-PIG).
✦ 6' Ethernet cable (SL100-CAT8-6).
✦ Note: No voice capability.

View full product details »

SkyLink 5100 Land Data Gateway Fixed Site Kit

$3,789.38

✦ Includes Dual-Mode Data Gateway (SL10001).
✦ Maruwa antenna (MHL-1621C).
✦ LTE antenna (YCN001AA).
✦ Universal mounting kit (SL100-MB).
✦ Anti-vibration pole mount (2179 V-BOLT).
✦ 50' outdoor Cat6 Ethernet cable (SL100-CAT6-50).
✦ POE (Power over Ethernet) injector (SL100-POE-INJ).
✦ 1' Ethernet Pigtail adapter (SL100-ETH-PIG).
✦ 6' Ethernet cable (SL100-CAT8-6).

View full product details »

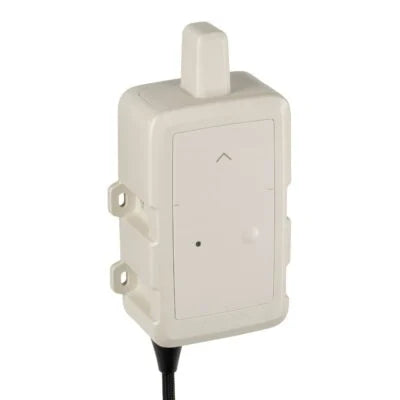

MYRIOTA FLEXSENSE

Myriota FlexSense has a very robust and rugged build, with its IP67-rated and UV-resistant enclosure, allowing for reliable use and excellent performance for remote deployments under extreme conditions globally.

Direct-to-orbit communication with the Myriota constellation eliminates the need to be within range of a ground communication tower (radio or cellular), central gateway, or other terrestrial infrastructure for data transmission. Myriota FlexSense offers a multi-year lifespan from 4 x AA lithium batteries (e.g. Energizer L91) with secure access to the battery compartment for field maintenance.

Communications
Myriota is the secure, private, low-power D2O satellite bi-directional connectivity link.

Dimensions  (H x W x D)
•  198 mm (Includes antenna and cable relief) x 95 mm x 47 mm
•  7,8 inches x 3,7 inches x 1,9 inches

Satellite Transmission Frequency
Myriota  Service 2 - 399.9 MHz - 400.05 MHz

Satellite reception band
Myriota  Service 2 - 400.15 MHz - 401 MHz

Field Update
•  Bluetooth Low Energy (BLE)
• USB-C

Temperature
•  Operational | -30°C a +70°C / -22°F a 158°F
•  Storage | -30°C a +70°C / -22°F a 158°F

Localization services
Global Navigation Satellite System (GNSS) for geolocation and tracking

Applications for Programming
Includes access to a library of one-click configurable apps suited for specific use cases and sensor types. Myriota’s Design Services team, or your own in-house development team, can develop custom apps using the Myriota Software Development Kit (SDK) and Device API.

Cable / Connection
It comes in its standard format with a 3 m connection cable, for power and sensors.

Expansion Header
Internal expansion interface to support other I/O options Interfaces

Environmental Certifications (pending)
• IP-67
• RoHS / REACH

View full product details »
