BGAN

BGAN Explorer 323

Compact one-piece voice and data solution.
EXPLORER 323 is an ultra-compact BGAN terminal for voice and data communication on-the-move, a perfect match for our Cobham PRISM PTT + solution. The one-piece system consists of a combined transceiver and switched beam antenna with integrated wifi. Whether you’re engaged in humanitarian operations, cargo or rail transportation, telemedicine or emergency services, you need easy deployable communication equipment you can always rely on-regardless of time or place.

View full product details »

BGAN Explorer 325

The world's most advanced, all-IP, BGAN machine-to-machine satellite terminal with integrated antenna and highest IP-66 ingress protection industry rating for outdoor installation.

eveloped to cover remote regions such as plantations and roads, Explorer 325 is a satellite BGAN terminal that allows you to talk and access the internet even in remote areas, being ideal for use on the move coupled to a vehicle. With the Explorer 325 it is possible to surf the Internet, downloading and sending files at a speed of up to 464 kbps with the standard data service or up to 128kbps in guaranteed bandwidth (IP Streaming). In addition, the terminal receives and makes voice calls and sends and receives SMS and files via Fax. The equipment is intuitive and easy to use. The terminal operates through Inmarsat, which uses geostationary satellites, covering all parts of the globe except the poles. Inmarsat has more than 30 years of experience in the market, having the largest portfolio of satellite solutions.

View full product details »

BGAN Explorer 325 Vehicle Satellite Terminal

$6,995.00

EXPLORER 325 is a compact BGAN system for on-themove communication. The system consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna with magnetic mounts.

• Explorer 325
• Features
• Videos

• With the Cobham EXPLORER 325, you can connect with the world via voice or data through the Inmarsat BGAN network instantly, even while the vehicle is in motion. The communication provided by the EXPLORER 325 will never leave you out of touch, even when traveling at speeds up to 200 km/h.
  BGAN allows data transmission speeds of up to 384 Kbps for streaming, even when moving at high speed over rough terrain. Enjoy a fast connection and the confidence that it won’t be interrupted when traveling through harsh environments.

• Data Services

  • Standard IP: Up to 384 Kbps (upload and download)
  • Streaming IP: 32, 64, and 128 Kbps (upload and download)
  • SMS: 160 characters

  Voice Services

  • Voice at 4 Kbps

  IP Protection Rating

  • Antenna: IP56
  • Transceiver: IP31

  What’s in the box?

  • Explorer 325 Transceiver
  • Tracking antenna for Explorer 325 with magnetic mount
  • Antenna cable, coaxial with TNC connectors (2.7 m / 8.8 ft) & Ethernet cable (2 m / 6 ft)
  • Thrane IP Handset with cradle & coiled cable
  • Quick start guide, user manual with CD
  • DC input cable 12/24V DC (3 m / 9.8 ft)



  More information: Download Brochure

• Videos

View full product details »

BGAN Explorer 510 Satellite Terminal

Fuera de Stock - $3,378.13

A rugged BGAN fit for purpose The all new EXPLORER 510 is the smallest ever EXPLORER BGAN and the ideal combination of performance and portability. The durable magnesium casing and a dust and water resistant design makes the EXPLORER 510 the perfect choice when working off the beaten track, but still dependant on a reliable connection.

• Explorer 510
• Features
• Videos

• The latest innovation in the EXPLORER satellite terminal range. The new Explorer 510 is the smallest in the Explorer line and the ideal combination of performance and portability.
  It offers reliable worldwide performance for simultaneous high-quality voice transmission and broadband access at speeds of up to 464 kbps, providing the flexibility and bandwidth needed for the user.

• Main Features:

  • Compact and cost-effective terminal
  • Standard data transmission speed: up to 464 Kbps downlink, 448 Kbps uplink
  • IP streaming speed: 32, 64, and 128 Kbps
  • Standard voice communication: 4 Kbps, premium 3.1 kHz audio – 64 Kbps
  • Dimensions: 202 x 202 x 51.8 mm
  • Weight: 1.4 kg
  • Interfaces: WLAN, USB, BGAN SIM card
  • IP protection rating: IP66

  What’s in the box?

  • Explorer 510 Terminal
  • Rechargeable lithium battery
  • Carrying bag
  • USB to Ethernet cable
  • Power cable 100/240 VAC
  • Starter kit with quick start guide in seven languages (ENG, FR, DE, ES, RU, JP, and CN)



  More information: Download Brochure

• Videos

View full product details »

BGAN Explorer 710 Satellite Terminal

Fuera de Stock - $8,536.38

EXPLORER 710 is a portable satellite terminal set to usher in a new era in the world of BGAN by setting new standards for size, speed and features.

• Explorer 710
• Features
• Videos

• BGAN terminal capable of connecting in HDR mode. It offers a guaranteed data rate of 650 Kbps with full channel options for higher video quality.
  It is the first to use the new Inmarsat BGAN HDR (High Data Rate) service platform.
  The Explorer 710 has capabilities that make it ideal for live video streaming from anywhere in the world.

• Main Features:

  • Compact and cost-effective terminal
  • Data transmission speed up to 384 Kbps
  • Dimensions: 259 x 195 mm
  • Weight: 1.6 kg
  • Data interfaces: Ethernet and Bluetooth
  • Voice interfaces: RJ11 and Bluetooth
  • IP protection rating: IP54
  • Streaming transmission up to 650 Kbps
  • Standard IP broadband transmission up to 1 Mbps
  • Supports simultaneous use of multi-user interfaces (RJ11, WiFi, Ethernet, USB, ISDN, and WLAN)

  What’s in the box?

  • Explorer 710 Terminal
  • Carrying case
  • Rechargeable lithium battery
  • AC/DC Power Supply - Input 100 to 240 VAC
  • International adapters (US, UK, EU, AU, China, N. Europe)
  • Short cable to connect the transceiver and antenna
  • Ethernet cable (6)
  • Quick start guide



  More information: Download Brochure

• Videos

View full product details »

BGAN Hughes 9502 (One-Piece model)

The world's most advanced, all-IP, BGAN machine-to-machine satellite terminal with integrated antenna and highest IP-66 ingress protection industry rating for outdoor installation.

The engineers at Hughes have developed a one-piece 9502 BGAN terminal that places the modem behind the antenna. This amazing all-weather terminal is sealed (IP-66 Ingress) to withstand powerful waterjets from any direction. The 9502 One-Piece is identical in operation as the standard two-piece 9502, the difference being no bulky antenna cable or enclosure needed. Ethernet and 12 volt DC power are the only cables running to this terminal. The One-Piece 9502 system is also identical in service performance to the Two-Piece 9502, even though it has a smaller antenna. Both systems are class 2 BGAN terminals. Only a 12 volt power cable and an Ethernet cable are needed for the cable run to this device. Exterior rated Ethernet cables are rated for 328 foot (100 meter) cable runs.

View full product details »

BGAN Safari

Cell phones and 3G modems do not work in remote areas such as plantations, forests and roads. With Safari it's possible to stay connected even when moving in a vehicle. Safari is a portable bgan terminal designed to be installed in vehicles. The terminal is compact, being one of the smallest on the market. With Safari you can make and receive voice calls, browse the internet, send and receive SMS, emails, faxes and files. The terminal also makes it possible to use Wi-Fi and cable to access the Internet, and is also compatible with conventional smartphones. The terminal operates through Inmarsat, which uses geostationary satellites, covering all parts of the globe except the poles. Inmarsat has more than 30 years of experience in the market, having the largest portfolio of satellite solutions.

View full product details »

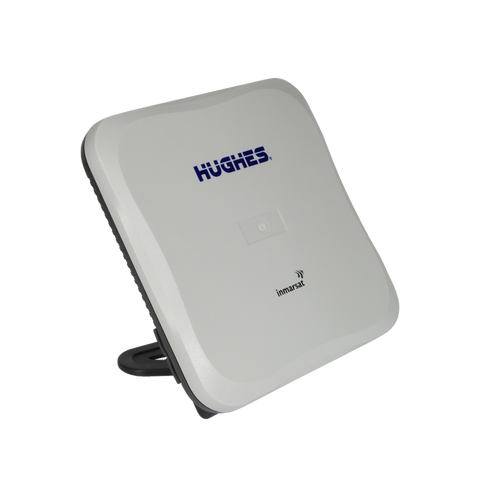

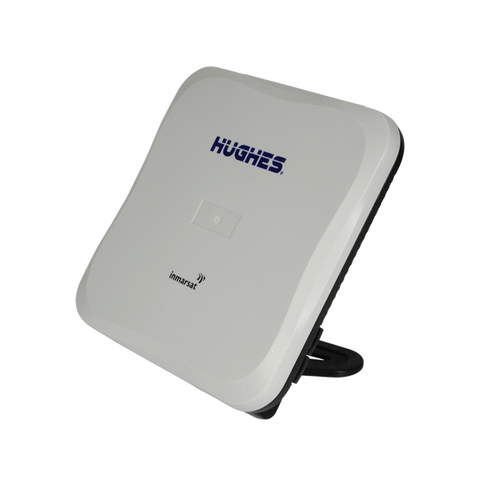

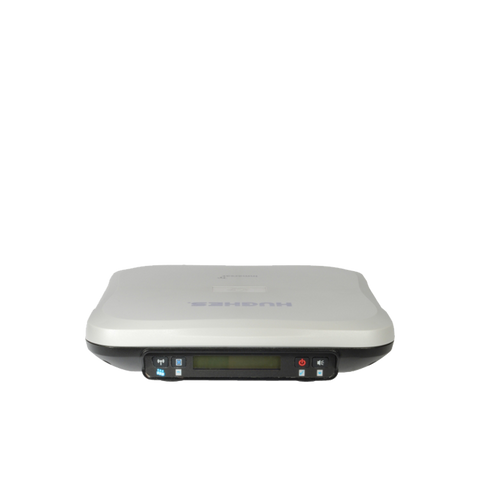

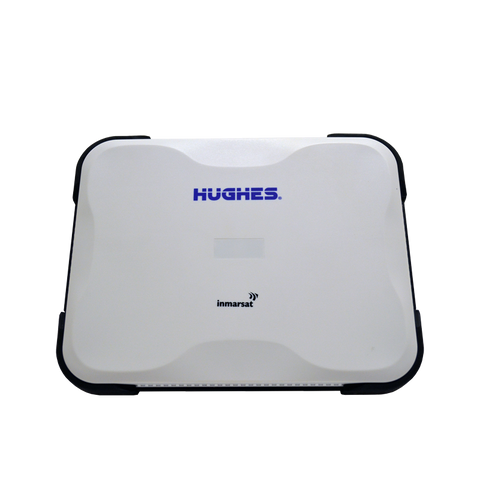

Terminal Satelital BGAN Hughes 9202

Fuera de Stock - $9,999.00

Broadband satellite IP terminal with built-in Ethernet, replaceable battery pack, RJ11 for voice or fax, external port to connect a tracking antenna, and built-in 802.11 Wi-Fi access point.

• Hughes 9202
• Features
• Videos

• The Hughes 9202 BGAN terminal is the smallest of its kind and can provide broadband Internet connectivity of up to 464 Kbps through its Ethernet port or via WiFi. It is ideal for communication from remote areas and in extreme conditions.
  It can provide multi-user data connections and voice communications simultaneously without affecting overall performance.
  Due to its portability and available services, it is an optimal solution for periodic use in remote areas or as a backup for traditional communication systems in emergency situations.

• Main Features

  • IP55 protection
  • Backlit LCD user display with four-button control
  • Indoor WiFi to support multi-user access
  • Two RJ11 ports for voice and fax
  • Full ISDN support, including Unrestricted Digital Information (UDI)
  • Advanced Integrated User Interface (IUI)
  • Automatic Context Activation (ACA)

  Interfaces

  • Ethernet connection (RJ45)
  • ISDN connection (RJ45)
  • Two RJ11 ports for voice and fax
  • Compass and audio tone to assist with antenna alignment

  What’s in the box?

  • Hughes 9202 portable terrestrial terminal
  • Rechargeable Li-ion battery pack
  • Ethernet cable (6 ft.)
  • AC/DC adapter with power cables for UK, EU, and US



  More information: Download Brochure

• Videos

View full product details »
